RLAD标准双节金属膜片联轴器

金属挠性膜片联轴器的经典设计,可靠的中低速应用选择。

  • RLAD标准双节金属膜片联轴器

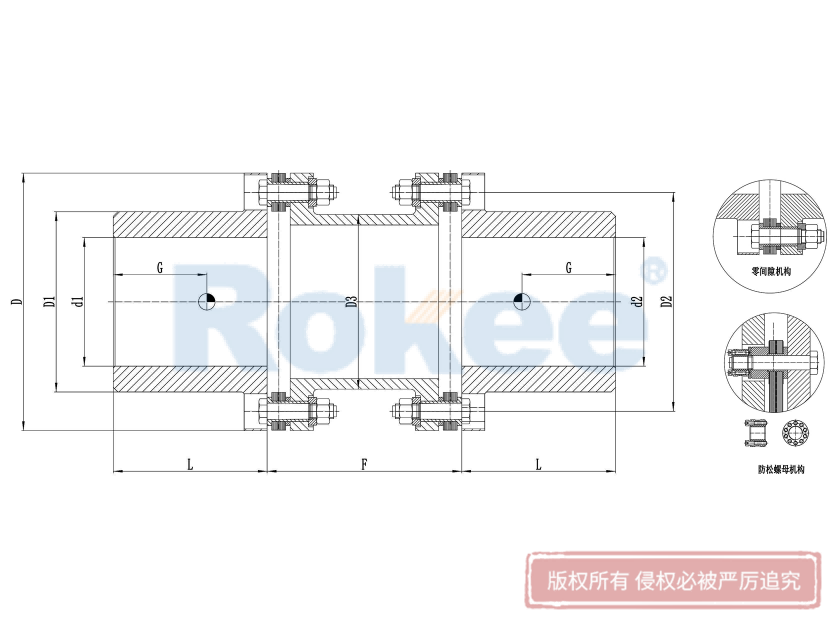

规格D小轮索毂D1D3小轮毂d1(max)大轮毂d2/D2L(标准/长系列)F(min)许用转速(max)公称转矩瞬时转矩(max)峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLAD115-611565474040-50/7560/1105516850230980485
RLAD135-613684605555-65/9380/110-14055155004501580950
RLAD155-615595726565-75/10590/140601400065021001290
RLAD175-6175108857575-85/122100/140-1706011800118025701350
RLAD200-61981271048585-100/140120/170-2106010000210035602780
RLAD225-6225153123105105-120/168140/170-210758500358052007200
RLAD235-6232153129105105-120/162140/170-2107578005000116508000
RLAD255-6252165148110110-130/180160/210-25085680085001540013200
RLAD280-6278183164125125-145/195170/210-25090620090001750014000
RLAD300-6298200190135135-155/210200/2501005500135002850021600
RLAD325-6325219199150150-170/235200/250-3001255180202503600031500
RLAD370-6370243215165165-190/2593001404680305004750038500

规格质点G角向偏差轴向偏差中间接套(min)中间套质量(米)中间套转动惯量中间套扭转刚度质量扭转刚度转动惯量角向刚度轴向力
(mm)(±△º)(±△mm)min(mm)kg/mJh(Kg.m²)Ct10E6(N.m/rad)(Kg)Ct10E6(N.m/rad)J(Kg.m²)N.m/degN
RLAD115-652.10.67°1657.650.0050.0515.690.1440.01708109.1510
RLAD135-662.21658.820.0150.1438.30.1470.0225200.8830
RLAD155-664.51.4859.930.020.20311.920.2140.05114.81070
RLAD175-677.61.48511.490.0310.31417.180.4630.0768157.91630
RLAD200-680.61.410515.040.0550.57124.880.4660.19742271860
RLAD225-696.91.610519.170.1151.17536.170.6650.2806203.31430
RLAD235-6103.21.615021.630.1061.06652.240.870.646147.92510
RLAD255-6118.1216023.380.1461.48771.771.4760.814198.13220
RLAD280-6122218530.210.2322.36194.831.4961.58226.44550
RLAD300-6141.3219032.970.3013.069131.631.5232.464435.64860
RLAD325-6145221044.120.494.989156.62.5883.55533.36150
RLAD370-6167.8222087.210.777.860 218.34.1446.222707.68070

规格D小轮索毂D1D3小轮毂d1(max)大轮毂d2/D2L(标准/长系列)F(min)许用转速(max)公称转矩瞬时转矩(max)峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLAD203-82031771649090-110/148140/170-2101807200102501730014700
RLAD235-8235168164105105-120/165140/170-2101806800135002106035900
RLAD255-8255196190110110-130/177160/210-2502006100202503150047400
RLAD290-8290210199135135-150/212180/2502005500305004750055400
RLAD340-8340238215160160-180/250200/250-3002505000325007850092500
RLAD370-8365252241170170-190/264210/250-30025045004200095800124000
RLAD400-8398280269175175-200/277250/300-250300420072000112500171000
RLAD430-8430330321200200-230/315250/350-410300380095000228000191000
RLAD480-8480360346255220-250/346250/350-4103503500125000312500300000
RLAD530-8530400390260255-290/393300/350-4104002980180000420000337000
RLAD600-8600440390290290-320-440350/410-4704502800250000669000503000
规格质点G角向偏差轴向偏差中间接套(min)中间套质量(米)中间套转动惯量中间套扭转刚度质量扭转刚度转动惯量角向刚度轴向力
(mm)(±△º)(±△mm)min(mm)kg/mJh(Kg.m²)Ct10E6(N.m/rad)(Kg)Ct10E6(N.m/rad)J(Kg.m²)N.m/degN
RLAD203-897.70.5°29019.090.080.81126.31.0770.14651.32240
RLAD235-8104.429025.030.1321.34439.52.5840.2815334030
RLAD255-8119.300 2.210028.950 0.1781.8151.000 2.9590.414955930
RLAD290-8124.700 D2.410032.970 0.3013.06875.800 3.7460.811306380
RLAD340-8141.700 3.8125042.270 0.6026.133116.900 5.1921.7619997420
RLAD370-8152.700 4.214058.690 0.8338.186146.800 8.732.52333811350
RLAD400-8184.000 4.815575.370 1.12911.509194.200 13.653.81843115380
RLAD430-8179.800 5.215579.830 1.58416.14228.300 15.185.42640116090
RLAD480-8185.900 5.5180104.370 2.5726.133316.200 19.849.54635719330
RLAD530-8212.86180132.84.2943.682423.523.1215.85736823100
RLAD600-8248.57200168.956.8770.03363632.5729.54847927310
规格D小轮索毂D1D3小轮毂d1(max)大轮毂d2/D2L(标准/长系列)F(min)许用转速(max)公称转矩瞬时转矩(max)峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLAD340-10340235215160160-180/250200/250-3002505000325007850092500
RLAD370-10370250241170170-190/265210/250-30025045004200095800124000
RLAD400-10400260269175175-200/278300/350300420072000112500171000
RLAD430-10430295321200200-230/315300/350300380095000228000191000
RLAD480-10480330346255220-250/346350/4103503500125000312500300000
RLAD530-10530375390260255-290/393350/4104002980180000420000337000
RLAD600-10600420390290290-320/440410/4704502800250000669000503000
RLAD630-10630455398300320/452410/4705503200262500574370341250
RLAD700-10700480448320320/452450/4906503000360000656250468000
RLAD760-10760505478340340/476450/49065028004562501043750593125
RLAD860-10860765528380380/532450/51074025006687501471250869375
RLAD950-10950625598420420/588540/590740220090000018900001170000

规格质点G角向偏差轴向偏差中间接套H中间套质量(米)中间套转动惯量膜片组扭转刚度质量扭转刚度转动惯量角向刚度轴向力
(mm)(±△º)(±△mm)min(mm)kg/mJh(Kg.m²)Ct10E6(N.m/rad)(Kg)Ct10E6(N.m/rad)J(Kg.m²)N.m/degN
RLAD340-10143.600 0.25°2.812547.270 0.6026.133119.600 9.681.7695478750
RLAD370-10154.300 314058.690 0.8338.186150.200 13.652.521374013630
RLAD400-10186.300 3.215575.370 1.12911.509201.400 18.153.813012017810
RLAD430-10181.500 3.322079.830 1.5816.155233.300 23.975.562675018970
RLAD480-10188.900 3.7230104.370 2.5791.95325.100 34.129.852900026390
RLAD530-10198.640 3.8245132.850 4.2926.182434.520 43.3110.1913340028300
RLAD600-10216.000 4250168.900 6.8743.68654.230 59.6317.0633765037500
RLAD630-10252.500 4.2265197.800 7.9570.03782.500 96.5539.1814689043250
RLAD700-10313.875 4.5290217.214 8.97104.85985.500 130.2362.1545467544580
RLAD760-10361.440 5290284.560 13.58135.451050.094 165.6796.6626954052870
RLAD860-10419.520 5.8320333.210 17.95197.5321369.448 245.535169.67658468750
RLAD950-10525.890 6.2350425.900 27.9217.151854.832 329.155264.5689783585430
  • RLAD系列是标准型双膜片联轴器,结构简单,用途广泛,能同时补偿径向和角向偏差, 是金属膜片联轴器经典设计,也是使用广泛的膜片联轴器产品。

  • 主要应用于电动机、内燃机驱动的各种泵、风机、压缩机、矿机磨煤机或者各类透平机械驱动的经过减速后的中低速传动。
