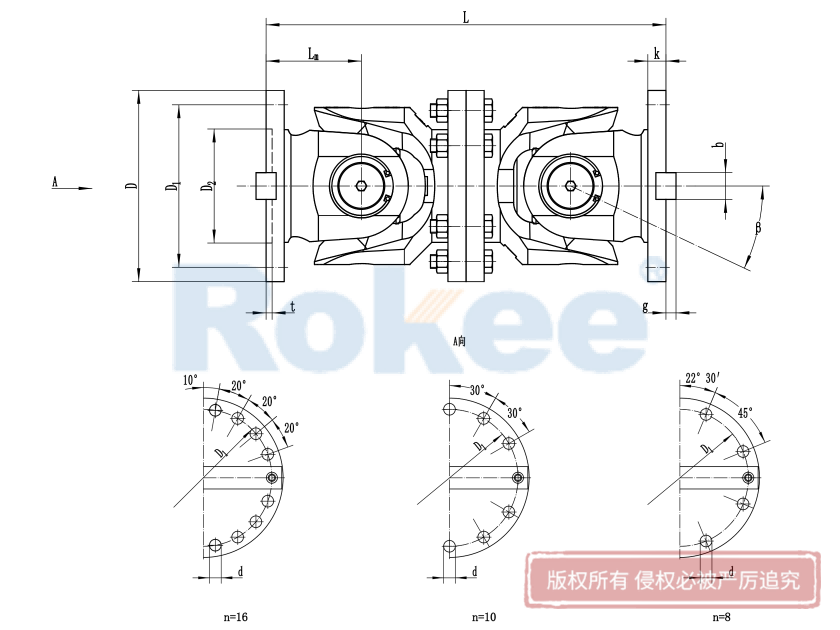

Model | Rotary Diameter D mm | Nominal Torque Tn KN ·m | Fatigue Torque Tf KN ·m | Bearing Life Coefficient KL | Axis Angle β (°) | Size / mm | Rotational Inertia kg ·m2 | Quality kg | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L | D1 (Js11) | D2 (H7) | Lm | Nxφd | K | t | B (H9) | g | ||||||||
SWC180WD | 180 | 22.4 | 11.2 | 0.245 | ≤15 | 440 | 155 | 105 | 110 | 8×φ17 | 17 | 5 | 24 | 7 | 0.145 | 52 |
SWC200WD | 200 | 36 | 18 | 1.115 | ≤15 | 460 | 170 | 120 | 115 | 8×φ17 | 17 | 5 | 28 | 8 | 0.261 | 76 |
SWC225WD | 225 | 56 | 28 | 7.812 | ≤15 | 480 | 196 | 135 | 120 | 8×φ17 | 20 | 5 | 32 | 9 | 0.355 | 82 |
SWC250WD | 250 | 80 | 40 | 2.82×101 | ≤15 | 560 | 218 | 150 | 140 | 8×φ19 | 25 | 6 | 40 | 12.5 | 0.831 | 127 |
SWC285WD | 285 | 120 | 58 | 8.28×101 | ≤15 | 640 | 245 | 170 | 160 | 8×φ21 | 27 | 7 | 40 | 15 | 1.715 | 189 |
SWC315WD | 315 | 160 | 80 | 2.79×102 | ≤15 | 720 | 280 | 185 | 180 | 10×φ23 | 32 | 8 | 40 | 15 | 2.820 | 270 |
SWC350WD | 350 | 225 | 110 | 7.44×102 | ≤15 | 776 | 310 | 210 | 194 | 10×φ23 | 35 | 8 | 50 | 16 | 4.791 | 370 |
SWC390WD | 390 | 320 | 160 | 1.86×103 | ≤15 | 860 | 345 | 235 | 215 | 10×φ25 | 40 | 8 | 70 | 18 | 8.229 | 524 |
SWC440WD | 440 | 500 | 250 | 8.25×103 | ≤15 | 1040 | 390 | 255 | 260 | 16×φ28 | 42 | 10 | 80 | 20 | 15.32 | 798 |
SWC490WD | 490 | 700 | 350 | 2.154×104 | ≤15 | 1080 | 435 | 275 | 270 | 16×φ31 | 47 | 12 | 90 | 22.5 | 25.74 | 1055 |
SWC550WD | 550 | 1000 | 500 | 6.335×104 | ≤15 | 1220 | 492 | 320 | 305 | 16×φ31 | 50 | 12 | 100 | 22.5 | 46.78 | 1524 |
